Photocentric LC Dental
The Desktop 3D Printer for Dental Applications
The dental 3D printer with a small form factor, extreme accuracy, reliability and high throughput.
Liquid Crystal Dental
- Incredible 310 x 174 x 200 mm Build Volume
- Blazing 18mm per hour 50um print speed
- 80 micron XY resolution
- Ultra High Definition 4K Screen
- 410nm Light Engine
State of the art Monochrome LCD Technology
The world’s first custom built monchrome LCD printer that’s designed to deliver high resolutions, fast prints and longevity.
The LC Dental with all-blue sub-pixel technology is 3x faster than conventional LCD technology. The custom monochrome screen has been designed specifically to operate at 410nm.
With a generous build volume of 300 x 174 x 200mm, LC Dental also provides an xy accuracy of 80 microns.
The custom light engine ensures even cure across the entire build area, achieving accuracy down to 50 microns.
Open Source Printer Means More Material Choices
The advanced technology of LC Dental’s printing screen and light engine enables you to use whatever resin you like; either Photocentric’s catalogue of materials finely tuned to the LC Dental printer or you can use 3rd party LCD, DLP and Laser materials.
Applications:
- Orthodontic Models
- Prosthodontic Models
- Surgical Guides
- Orthodontic Splints

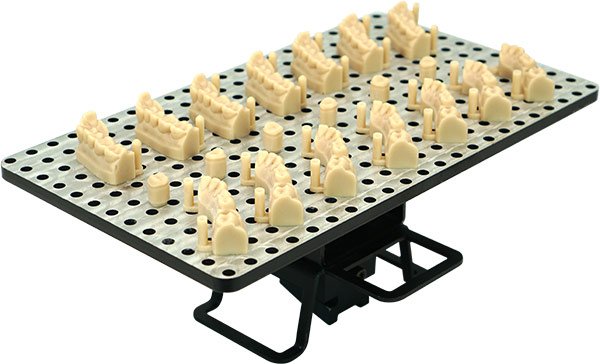

Print dental parts in exceptional detail and accuracy
Technical Specifications
Print Speed
Light Engine
Layer Thickness
Layer Time Full Platform
LED Backlight Power
Pixel Pitch
Cure Speed
Touchscreen
Resin Fill System
Peeling Aid
Vat Life
Throughput
Compatible Resins
Biocompatible Materials
Connectivity
Leak Resistance
Dimensions
Weight
Warranty
18mm per hour 50um
410nm
25-100um
10 seconds @ 50um
495W (165 x 3w LED’s)
80um
2-6 seconds per layer at 50um (dependent on resin)
7″ – 800 x 480px
Manual
Vat Lift
100 Prints-Reskinning cost $15
H: 192 V: 207 Dental Arches in 8 hr shift
LC Dental Resins
3rd Party resins E.g NextDent, Dreve and Whipmix
Wi-Fi (2.4, 5 GHz) Ethernet (1Gb), USB 3.0
Wipe-clean sheet metal surfaces sealed with O-ring
605 x 491 x 419 mm (H x W x D)
38kg
1 Year
What’s Included
LC Dental 3D Printer
1Kg Sample Resin
Accessories:
16GB USB
Wi-Fi Dongle
Vat Cleaning Tool
2 x Vat Gaskets
2 x Vat Film
Pozi2 Screwdriver
Pozi1 Screwdriver
5mm Allen Key
3mm Allen Key
Funnel
5 x Paper Filters
2 x Gloves
Silicone Mat
Platform Hanger
Scraper
Power Cord
Software
Photocentric Studio
Perpetual Licence for 2 devices
Minimum Computer Requirements:
Microsoft Windows 7, 8 or 10
2GHz dual core processor
OpenGL version 3.0 or higher capable graphics card
NET framework version 4.0
64bit system: recommended 4GB RAM
32bit system recommended 2GB RAM
Built-In PrintFlow Printer Controller
Datasheets
Contact Us
If you would to discuss Photocentric LC Precision 1.5 3D Printers or request a sample, please contact us by calling on 1800 490 514, by filling out the form or clicking the live chat in the bottom right-hand corner.
