Photocentric LC Magna
Large Format 3D Printing Enabling Custom Mass Manufacturing
The latest generation of Photocentric large format 3D printers are capable of manufacturing large parts at a scale previously impossible using other 3D printing technologies.
With continuous advancements in LCD screen sizes and resolution, Photocentrics patented Daylight LCD technology and materials development are disrupting the way industrial parts are made.
Delivering industrial scale 3D printing at the fraction of the price of conventional hardware, Photocentric has made 3D printing accessible for industries looking for a solution to their production line.
- Large format build volume 510 x 280 x 350 mm
- Incredible print speeds of 13.3mm per hour at 100 microns
- Amazing cure speed of 100 microns 45 sec / layer (depending on resin)
- 3840 x 2160px 4K Screen
- 25, 50, 100, 150 & 200 microns

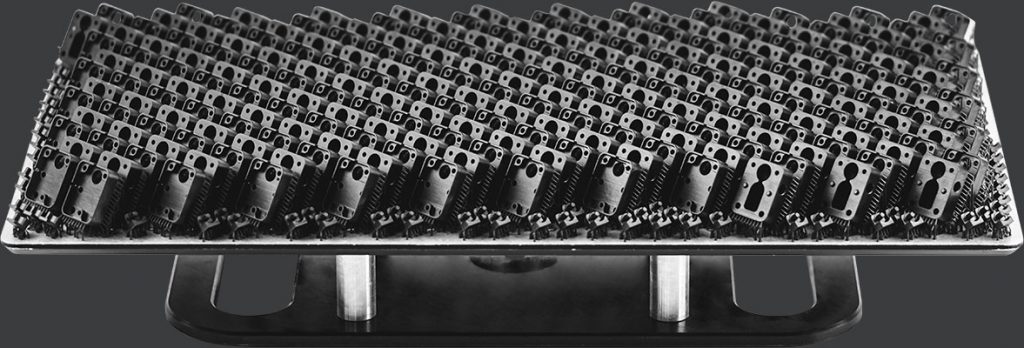

Electrical Sensor Housing
375 parts in total – 3 parts per housing
Professional, Reliable Plug-N-Play Technology
Hollow models with infill.
4K Ultra High Definition Display
Using a purpose-built optimised light engine emitting through the LC Maximus’ ultra 4K LCD screen delivers suprising accuracy. The pixel pitch of xy resolution 230 um is enhanced by anti-aliasing and resolutions of +/- 150 um can be achieved on built parts (depending upon resin type and geometry). The build speed, volume and cost make this offering incomparable to the conventional technology of large format laser SLA machines.
LC Magna is manufactured in the UK using the highest engineered materials possible, setting new standards in printer quality and reliability. Their patented blow-peel technology all but eliminates the forces that come into play with large build volumes.
Photocentric has achieved the possibility of fast printing in the LC Magna by adjusting the photo-reactivity of the resins and specifying a powerful light engine. It makes it one of the most impressive machines ever made that can selectively;y convert functionlised polymers into solids.
Their expertise in resin material development and print hardware delivers the compete solution for every industry. With expertise in house from their team of chemists, software engineers, mechanical engineers and technicians, Photocentric have managed to achieve rapid print times building functional materials for a variety of different applications. Print speeds of down to seconds per layer (resin dependent) make Maximus the machine of choice for large production capability.

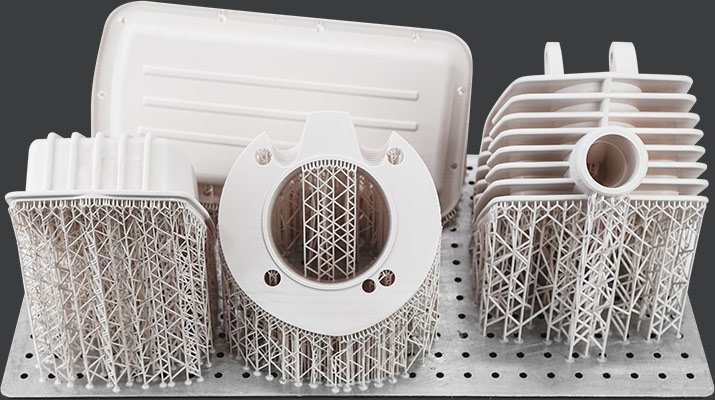

Motorbike Engine Parts
Creating the Largest Quantity of a Single PPE Item by 3D printing Ever Made
Photocentric has mass produced 7.7 million face shields for the NHS using unique and disruptive LCD technology, Photocentric has demonstrated one of the real benefits of immediate product development and manufacturing when supply chains are down.

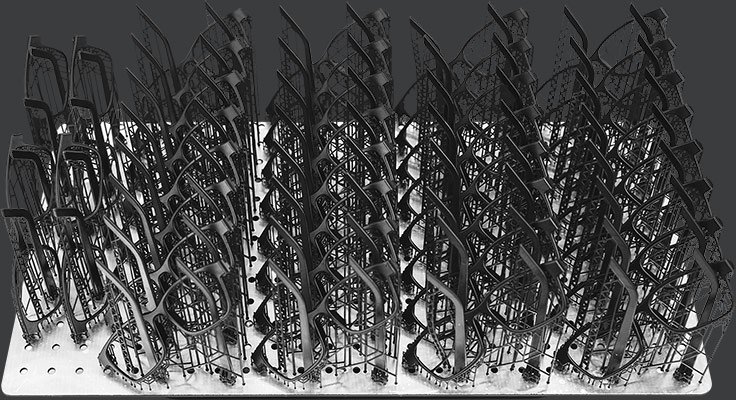

36 glasses per platform
510 x 280 x 350mm
3840 x 2160px 4K Screen
13.3mm per hour
7″ – 800 x 480px
Aluminium with Teflon Coating
New reskin technology, lighter with spout
Daylight Magna Resins
Standalone, USB ethernet, Wi-Fi
3-8 seconds per layer at 100um (dependent on resins)
850 x 640 x 900mm (H x W x D)
LC Magna 3D Printer
2kg Daylight Hard
2kg Daylight Dental
Model White Resin
Vat Cleaning Tool
2 x Vat Gaskets
2 x Vat Seals
Vat foam cleaning mat
5 x Paper Filters
2 x Gloves
Extraction spigot 100mm
20x Large Vat screws
20x Small vat screws
Perpetual Licence for 2 devices
Minimum Computer Requirements:
Microsoft Windows 7, 8 or 10
2GHz dual core processor
OpenGL version 3.0 or higher capable graphics card
NET framework version 4.0
64bit system: recommended 4GB
32bit system recommended 2GB
Built-In PrintFlow Printer Controller
