The GRAITEC PowerPack provides a broad suite of unique commands and functionality to significantly increase productivity when working with Autodesk® Revit®.

These practical, every-day utilities focus on speeding up modeling, simplifying family management, documentation and enhanced external data-links for a dramatically improved BIM workflow.

Flexible and multidisciplinary, GRAITEC PowerPack creates a significant added value for all experts involved in BIM Project (BIM Manager, BIM Modeller, BIM Coordinator, Architect, Structural engineer, Designer, or MEP engineer).

Productivity and BIM

PowerPack for Revit introduces tools for automating tasks such as numbering any Revit objects, upgrade Revit files, automatically join connections on all intersections within a model, create dimension lines, or Export Revit views in several formats (PDF, NWC, IFC, DWG…). In addition, PowerPack for Revit proposes some features to enable external data-links such as a bidirectional link to Excel.

Besides a range of multidisciplinary tools, PowerPack for Revit offering a large set of commands for Rebar detailing to accelerate rebars drawing creation. Some other unique features will enable you to directly design structural components (walls, beams, columns, footing, or slabs) thanks to external FEM results load in Revit.


Quick Dimension

Converts an intersecting line to a dimension string.

Join Dimensions

Joins individual dimensions to a single chain.

Level Dimensions

Places elevation symbols.

Graitec Powerpack for Revit Level Dimensions

Add / Edit Floor Structure Tag

Adds a tag with room floor type and material finish.

Window Sill Tag

Adds a tag displaying the sill height and opening size.

Text Case

Instantly change the case type of all or selected text.

Edit Mark

Modify the mark parameter for selected elements using formulas to add prefixes or change numbering sequence.

Dimension Preferences Configuration

Creates a set of dimension lines for walls and grids.

8. Dimension Preferences Configuration Moving at the Speed of Business

Auto Dimension

Set the number, style and distance between dimensioning lines.

Number Everything

Generic numbering tool covers grids, levels, rooms, structural elements, ducts, doors, elements creation direction from source to end.

10. Number Everything Moving at the Speed of Business

Center of Gravity

Calculates the Center of Gravity of selected objects.

Pipe Description Tag

Adds a description tag to a selected pipe.

12. Pipe Description Tag Moving at the Speed of Business

Views & Sheets

Level Displacement

Creates an exploded or displaced model view.

Auto-Arrange Views in Sheets

Auto-arrange views on sheets.

Duplicate Sheets

Duplicate a view with the exact same legends and schedules as the original one.

3. Duplicate Sheets Moving at the Speed of Business

Create Plan Views

Create floors, ceilings and structural plans, with view templates.

Graitec Powerpack for Revit

Create 3D Views

Create 3D views of selected objects.

Export Sheets to DWG

Batch export Sheets to DWG format.


Design and create dynamic custom legends to fit standard paper size.

Auto Section Box

Automatically generates a new 3D view of selected elements.

Precast Tools

Used to compute volumes and decide which element is included in the schedules and which is not.

Graitec Powerpack for Revit

Impact Views Management

Design and create dynamic custom legends to fit standard paper size.

10. Impact Views Management Moving at the Speed of Business

View Sheet Generator

Automatically generates a new 3D view of selected elements.

Windows Arrange

Simplified arranging of active windows with auto-tile and center-view options.

Automatic engineering drawings

Automatically generate engineering drawings starting from configurable templates.

Graitec Powerpack for Revit

Automatic bar schedules

Automatically calculate and display rebar quantities in a bar schedule.

Graitec Powerpack for Revit

File Management

Family Manager

Graphically browse, search and load your families in a single window + Launch Family Editor.

Remove Backup Files

Automatically searches for backup file and deletes them.

Graitec Powerpack for Revit

Watermark Manager

Add password protected ownership credentials to your Revit® Families.

Link / Prepare background modeller

Before linking a Revit® project, easily purge it and automatically transfer projects standards and levels coming from this link to Revit® project host.

4. Link Prepare background model Moving at the Speed of Business

File Updater

Batch update all your project files to a later version.

Family Exporter

Batch export Sheets to DWG format.

Work Tracker

Records the time spent by a user on a project or file from Autodesk Revit® and creates activity charts, which can later be used to create activity reports.

Graitec Powerpack for Revit

Batch Export

Quickly export your Revit® views to any available format (PDF, IFC, NWC, DXF), all at once.

Graitec Powerpack for Revit


Pipe Openings in Structural Elements

Automatically create holes in intersecting elements to accommodate pipe/duct runs.

Door Side

Add door swing parameters to all doors for more accurate scheduling.

Move XY

Allows elements to be moved in X & Y direction together.

3D Grids

Creates a Revit® symbol from existing grids, making them visible in 3D Views.

Graitec Powerpack for Revit

To Model Line

Automatically draws model lines over selected elements.

5. To Model Line Moving at the Speed of Business

Category Visibility

Tick-box window to view/hide single elements or entire categories in model view.

Add Parameters

Automatically add a wide range of useful parameters, such as dimensions.

7. Add Parameters Moving at the Speed of Business


Convert 3D CAD files to Revit® Families with update feature

Ribbon Customization

Manage and organize your PowerPack tools Ribbon.

Graitec Powerpack for Revit

Join & Unjoin Geometry

Automatically generate clean intersections, by creating rules between categories (floor, wall, foundations).

Join Openings

Allows multiple openings to be combined in the same host element.

Pipe Insulation

Automatically assigns insulation to the systems based on parameters or assigns a specific value.

12. Pipe Insulation Moving at the Speed of Business

Split Pipes

Batch process all pipes and ducts to specified lengths.

Cable Length

Calculates the total length of the automatic or manual cable paths.

Graitec Powerpack for Revit

Detect and Correct Analytical Errors

Check errors in the analytic model, and correct them using ergonomic features as trim, extend, stretch.

12. Pipe Insulation Moving at the Speed of Business

Reset Analytical Models

Reset manual adjustments for all analytical elements.

Graitec Powerpack for Revit

Toggle structural elements Analytical Floors

Used to activate or deactivate the analytical model, for a faster inspection of the model.

Graitec Powerpack for Revit


Split Rebar

Split rebar by certain rules (maximum length, exact number of splits) and use different methods of connections (lapping, cranking rebars or using mechanical couplers).

Graitec Powerpack for Revit

Opening reinforcement

Easily create reinforcement cages around multiple openings at once.

Graitec Powerpack for Revit

Edge Reinforcement

Easily create reinforcement cages along multiple edges at once.

Graitec Powerpack for Revit

Tick and Tag

Places a symbol at the end of the rebar in order to highlight lap splices.

Graitec Powerpack for Revit

Rebar Cage / Edit

Edit the calculated rebar cage or model from scratch a parametric rebar cage.

8. Rebar Cage Edit Moving at the Speed of Business

Cranked Bar

In order to address rebar collisions, parametrically crank the rebars at the endings.

Graitec Powerpack for Revit

Rebar Visibility

Change the representation of the rebars from line to solid.

7. Add Parameters Moving at the Speed of Business

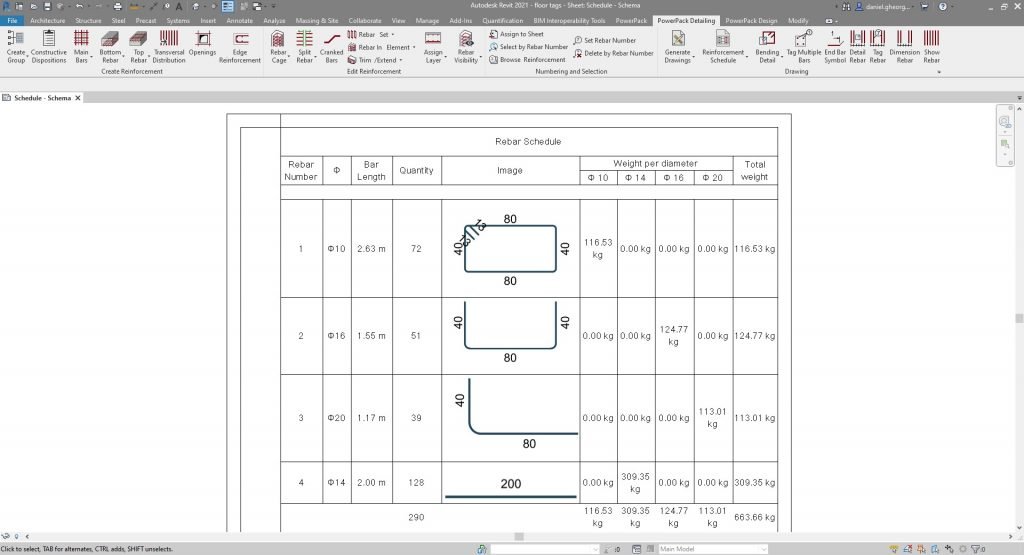

Schedule Schema

Automatically create rebar definition images for schedules.

Graitec Powerpack for Revit

Bending Details

Create bending details from selected rebars, improving detailing functionalities.

Graitec Powerpack for Revit

Generate Drawings

Automatically generate full reinforcement views, schedules and sheets.

Graitec Powerpack for Revit

Copy and Delete Rebar

Easily copy rebar structure from one element to another of similar shape or size, or delete the rebar from the selected elements.

Bars Layers Management

Use layer parameters in order to simplify rebar visibility on drawings and schedule creation.

Graitec Powerpack for Revit

Rebar numbering

Assign Rebar Mark number and Manage Rebar trough number (delete or select per number, browse reinforcement per number).

Tags / Dimension lines for Rebar

Place quickly dimension line for Rebar set, associated with a tag rebar.

Graitec Powerpack for Revit

Manage Rebar Set

Explode, Split, unite Rebar set in Autodesk Revit®.

Trim and Extend Rebar

Adjust Rebar geometry (Rebar to face, rebar to element, cut rebar around opening

Transversal Reinforcement

The tool allows varying reinforcement to be applied to columns and beams as required.

Graitec Powerpack for Revit


The reinforcement designer, available in the GRAITEC Power Pack for Autodesk Revit®, allows users to create, update and modify reinforcement cages for slabs, walls, beams, columns and footings. Reinforcement can be done automatically, based on numerous parameters, which can be either imported or set manually.


Graitec Powerpack for Revit


Graitec Powerpack for Revit


Graitec Powerpack for Revit


Graitec Powerpack for Revit


Graitec Powerpack for Revit

BIM Workflows

Link to Excel

Connect Excel worksheets to Revit®.

Key Parameters

Assign custom parameters to Revit® Families via Excel.

Worksheet to DXF

Connects Excel worksheets to the current Revit® project by inserting a linked and scalable DXF that auto-updates when the project is opened.

Graitec Powerpack for Revit

Element lookup

Quickly filter and select elements, according to any given parameters.

Import Clash from Navisworks

Import clash-detection analysis results from Navisworks, in order to easily modify and correct your model.

Graitec Powerpack for Revit
