Continuous Fiber 3D Printers

One of the most advanced, fastest and largest continuous fiber 3D printers on the planet

ANISOPRINTING TECHNOLOGY
MANUFACTURING OPTIMAL COMPOSITES THROUGH CONTINUOUS FIBER 3D ANISOPRINTING

With over 10 years experience in composites manufacturing, Anisoprint are the experts in composite material for 3D printing.

If you need to 3D print super-strong parts that rival metal, that are lightweight and need to print fast, look no further than Anisoprint.

With the ability to print any plastic as a matrix, the Anisoprint system lays continuous fiber to make strong, lightweight parts.

Stop thinking metal

Print for

Mass
Scale

prom IS 500 print farm
parts

Models

Choose from Desktop A4/A3 sizes or the Industrial large format ProM for non-stop production.

Desktop

Anisoprint Composer A4 and A3

Composer A4 and A3

Continuous fiber reinforced composites

Anisoprint Composer Desktop comesin 2 models, the A4 and the A3.

A4 Build Volume: 297x210x140mm

A3 Build Volume: 460x297x210mm

System: Open. Providing users with flexible material choice, fiber volume ratio, parts complexity and fiber laying trajectories

Structure: Optimal composite Lattice reinforcement structures for miminum weight, price and production time.

Industrial

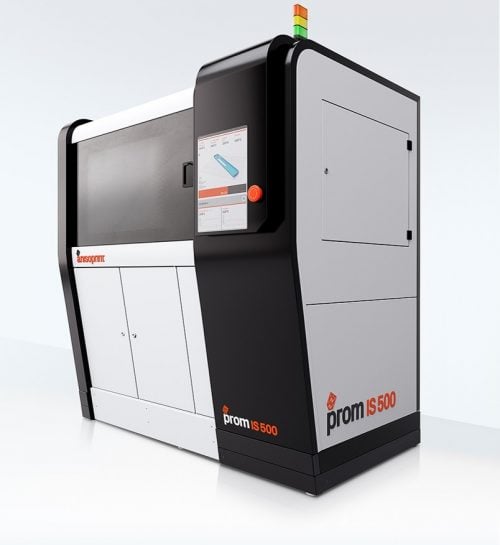

Anisoprint Prom IS 500 Industrial composite continuous carbon fiber 3D printer

Prom IS 500

Continuous fiber reinforced composites

High-temp plastics up to 400 degrees celsius such as PEEK and PEI

Large Build Volume: 600x420x300mm

Heated Build Chamber up to 160 degrees celsius

System: Open. Providing users with flexible material choice, fiber volume ratio, parts complexity and fiber laying trajectories.

Made for 24/7 3D production printing.

Structure: Optimal composite Lattice reinforcement structures for miminum weight, price and production time.

Anisoprint Diagram 2
Anisoprint Diagram

3D Print with Excellent Surface Finishes, Accuracy and Lattice Structures

Materials

With an open printing system, you have the freedom to use any filament. Choose from Anisoprint materials, extended material profiles from Polymaker and eSun or use your own!

Anisoprint Materials

Anisoprint CFC PA Moving at the Speed of Business

COMBINE

BASE FILAMENT

WITH

CONTINUOUS FIBER

Anisoprint CCF Moving at the Speed of Business

OR

Anisoprint CBF Moving at the Speed of Business

Plastic Filaments

Anisoprint Smooth PA Moving at the Speed of Business
Anisoprint CFC PA Moving at the Speed of Business

SMOOTH PA is 10% carbon fiber reinforced PA12 filament, which provides improved
surface quality, strength and warping. Compared to other polyamide filaments on the
market, Smooth PA features low moisture absorption and anti-warping technology.

CFC PA is a non-filled Polyamide 12 developed by Polymaker for Anisoprint CFC (Continuous Fiber
Co-extrusion) technology. The low viscosity of the plastic ensures better adhesion between the fiber
layers, while the fast cooling and solidification rate helps to achieve better fiber placement.
This low water absorption plastic can be printed without a dryer.

pdf icon
Technical Datasheet
pdf icon
Technical Datasheet

Anisoprint has profiles of Anisoprint, generic, Polymaker and eSun filaments. Learn More about the open Anisoprint system, supported filaments and continuous fibers

Aura and Aura Premium Slicing Software

Specially designed software for anisotropic 3D printing to give you the freedom and flexibility to 3D print the most complex structures, lay fibers in the right areas, in the right volumes and direction to achieve the right direction loads and orientations.

Aura 1
  • For FFF and CFC printers
  • Supports STL, STP, OBJ and 3DS files
  • Models saved locally to PC
  • G-code generalisation geometry view
  • Separate settings and combinations for printers, plastics and profiles
  • Layer masks
  • Combination of continuous fiber lattice, linear, concentric and curvlinear fiber orientation
  • Modify the fiber to volume fraction
  • Open system to print any material
  • G-Code export
  • Headless mode

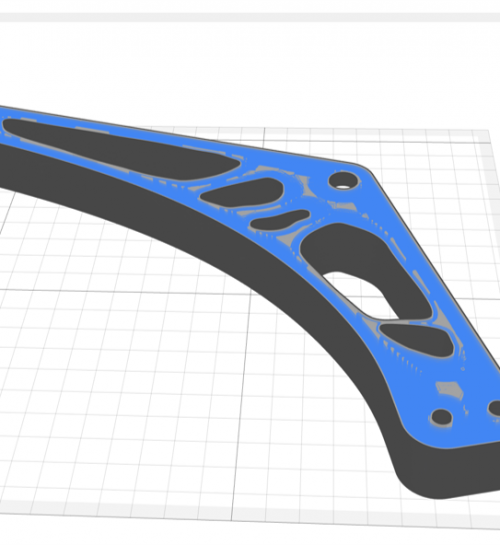

Aura 2
Anisoprint aura software Moving at the Speed of Business
